The Switch-Pros - 8 Switch Panel Power System is a premium switch panel power system designed to streamline the control of your vehicle's accessories. With Bluetooth connectivity, RGB backlighting, and a compact relay-free design, it’s the perfect solution for off-road, race, and utility vehicles needing a rugged, programmable, and easy-to-install electrical control system.

Features:

8 Button Switch Panel with 8 outputs
RGB backlighting for customizable illumination
Built-in Bluetooth module for wireless control via the free Switch-Pros App (iOS & Android)
Battery voltage readout displayed in the app for real-time monitoring
Orange LED switch indicators for clear visibility
LED input status indicators on the power module for easy troubleshooting
Preset dimming function with memory (adjustable from 100% to 10% brightness)
Master mode allows control of up to seven switches with a single press
On/Off or momentary function for versatile accessory control
Ignition or battery input options for flexible wiring setups
Flash or strobe mode with user-selectable strobe patterns and one-touch activation
Automatic power-up when the vehicle starts
Time delay off to control shutdown timing for accessories
Low voltage disconnect to prevent battery drain
Sleep mode for minimal power consumption when not in use
Two external trigger inputs that can activate up to four outputs each (Active Hi or Active Low)
Daisy chain capability to link up to three Switch-Pro switch panels to a single power module
IP67 waterproof rating for durability in extreme conditions
Compact, relay-free design for simplified installation
Proudly made in the USA

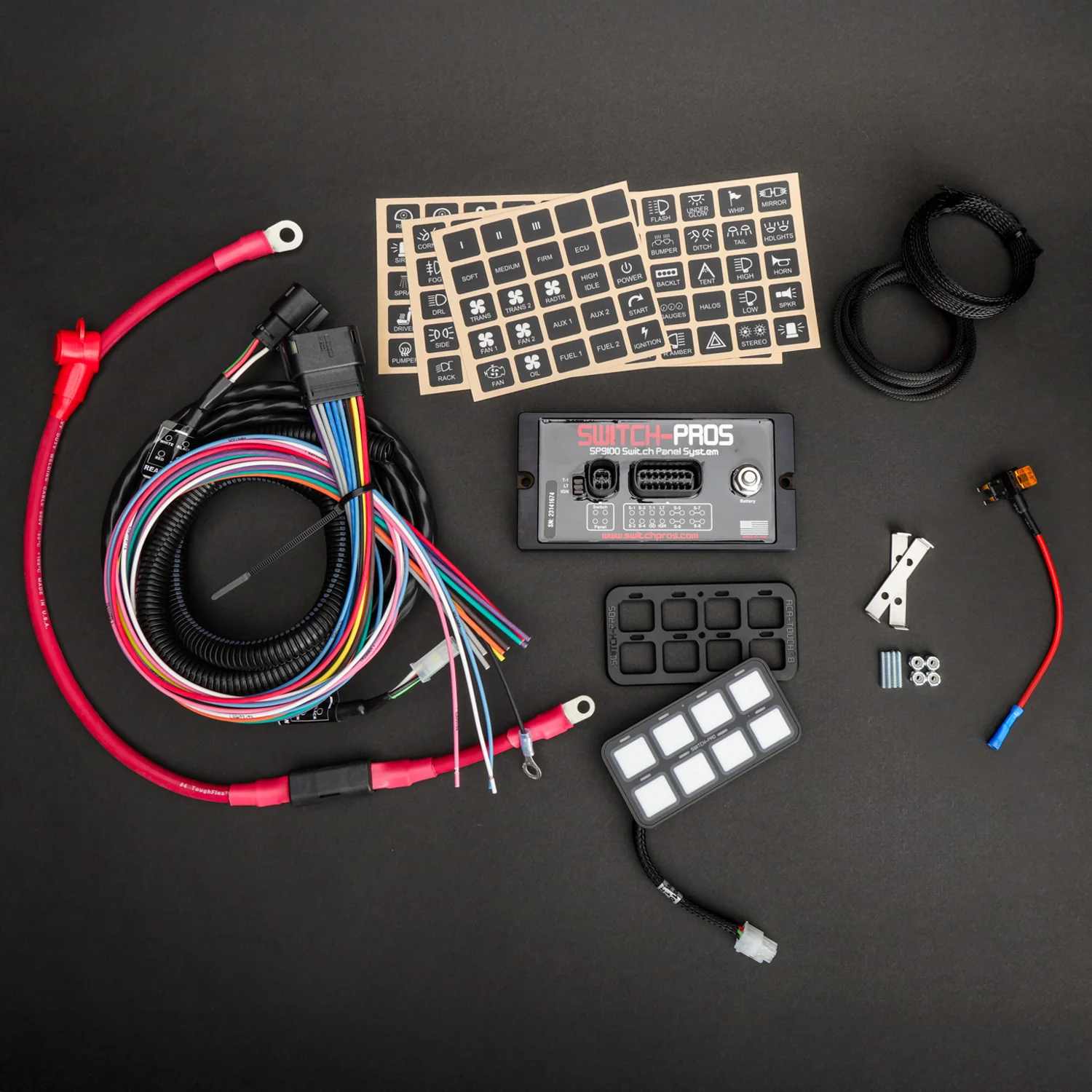

Includes:

Switch Panel and Power Module for complete accessory control
RCR-Touch® 8 Cover for enhanced switch selection, even with gloves (U.S. Patent No. US D922,969 S)
11’ communication cable between the switch panel and power module
Power cable with 125A inline fuse for secure power distribution
125 user-selectable legends (horizontal orientation) for customizable labeling
Installation brackets and hardware for secure mounting
16-pin color-coded output harness for streamlined wiring
Detailed installation guide for easy setup

Specifications:

125A total capacity with 8 configurable outputs
Output ratings: 4 outputs @ 35A, 4 outputs @ 20A
Adjustable overcurrent protection for each output
Switch panel dimensions: 4” L x 2” W x .375” H
Power module dimensions: 6” L x 3” W x .5” H (excluding connectors)
Operating temperature: -40°C to 125°C

The Switch-Pros SP9100 is the go-to choice for off-roaders, racers, and professionals seeking a powerful, user-friendly switch system with advanced features and rugged reliability.
