Starlink Mini Quick Release Mount

Vehicle Compatibility: Universal fit for all flat surfaces or round roll cage/tubular bars.

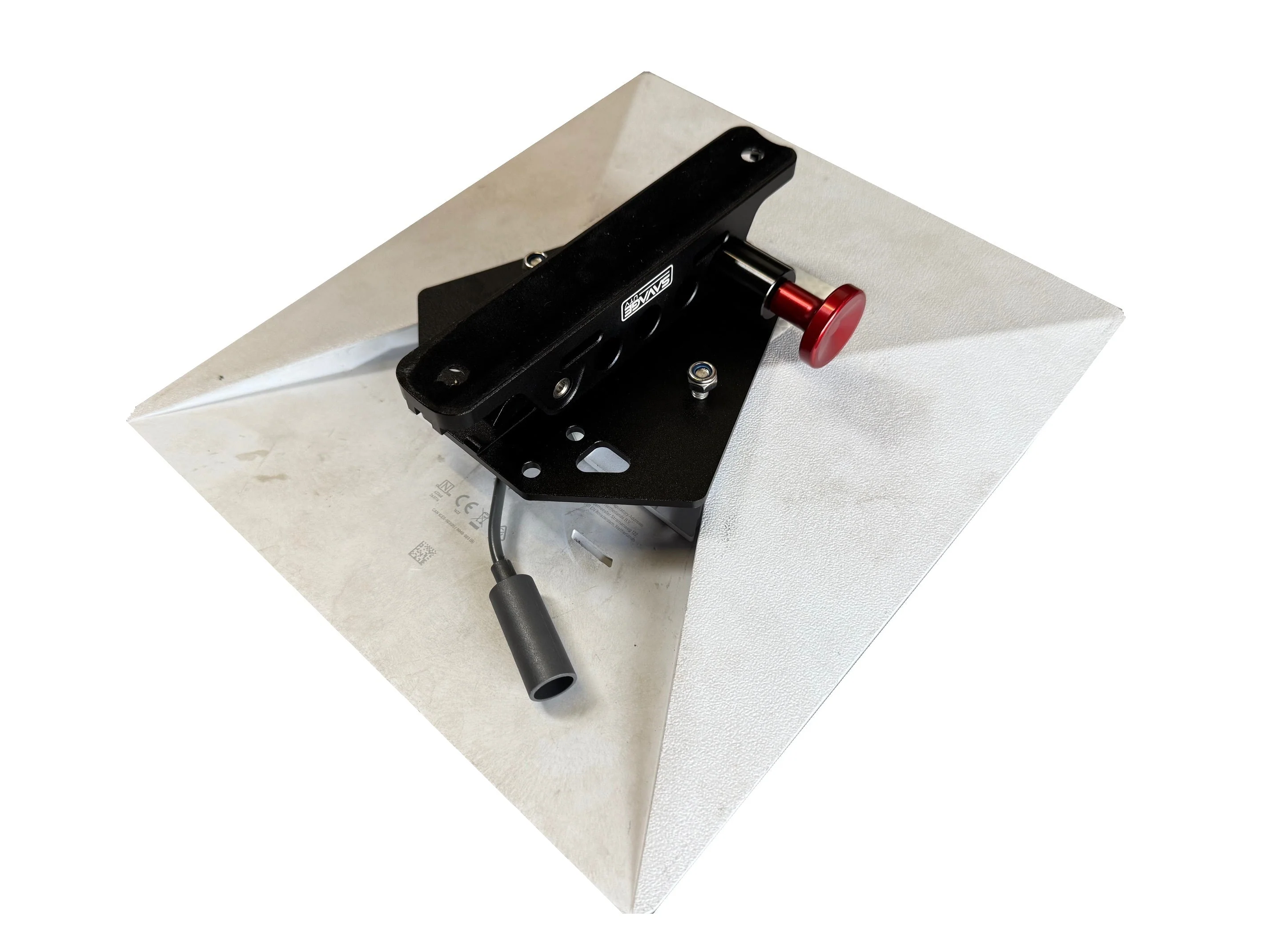

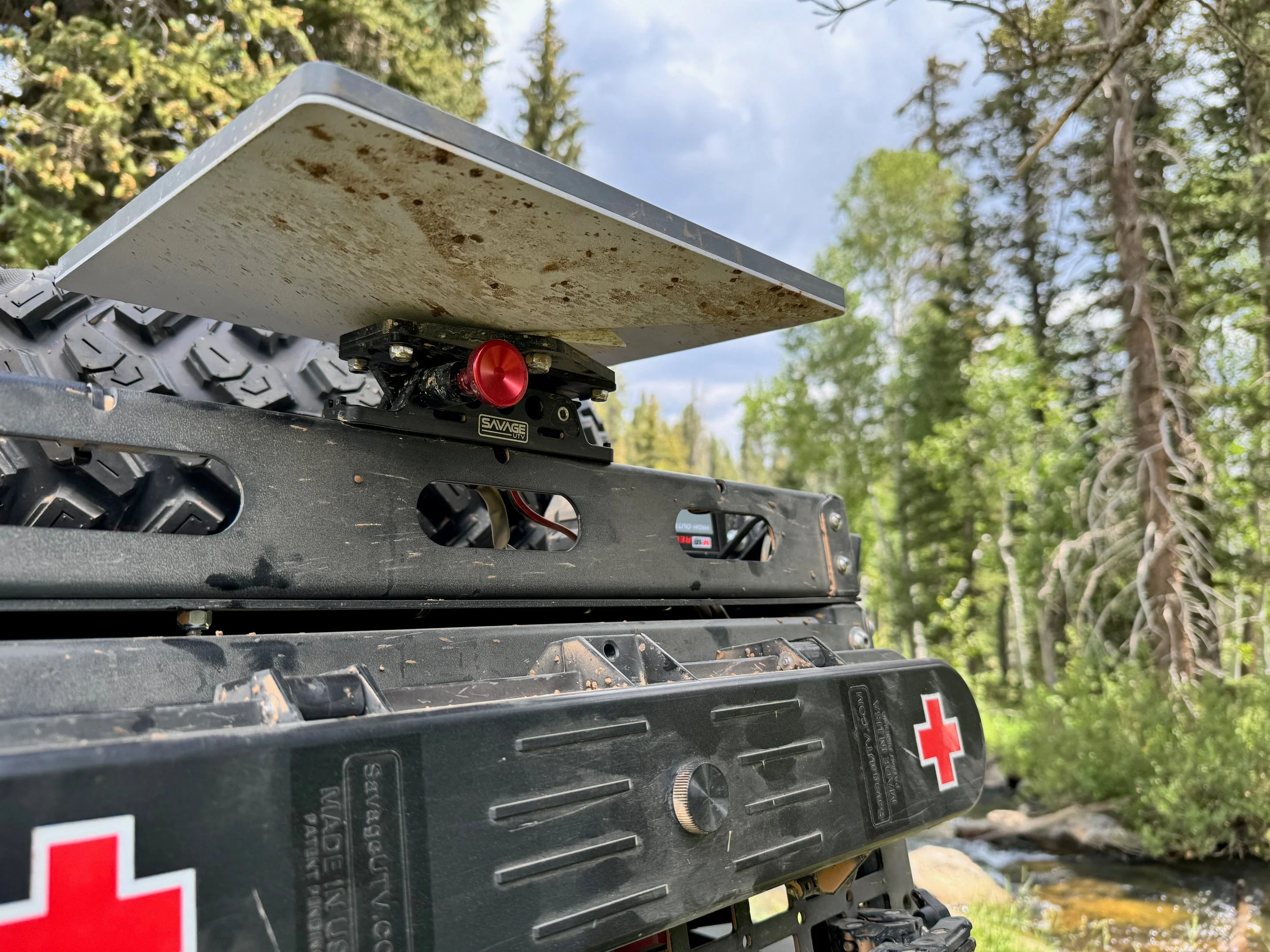

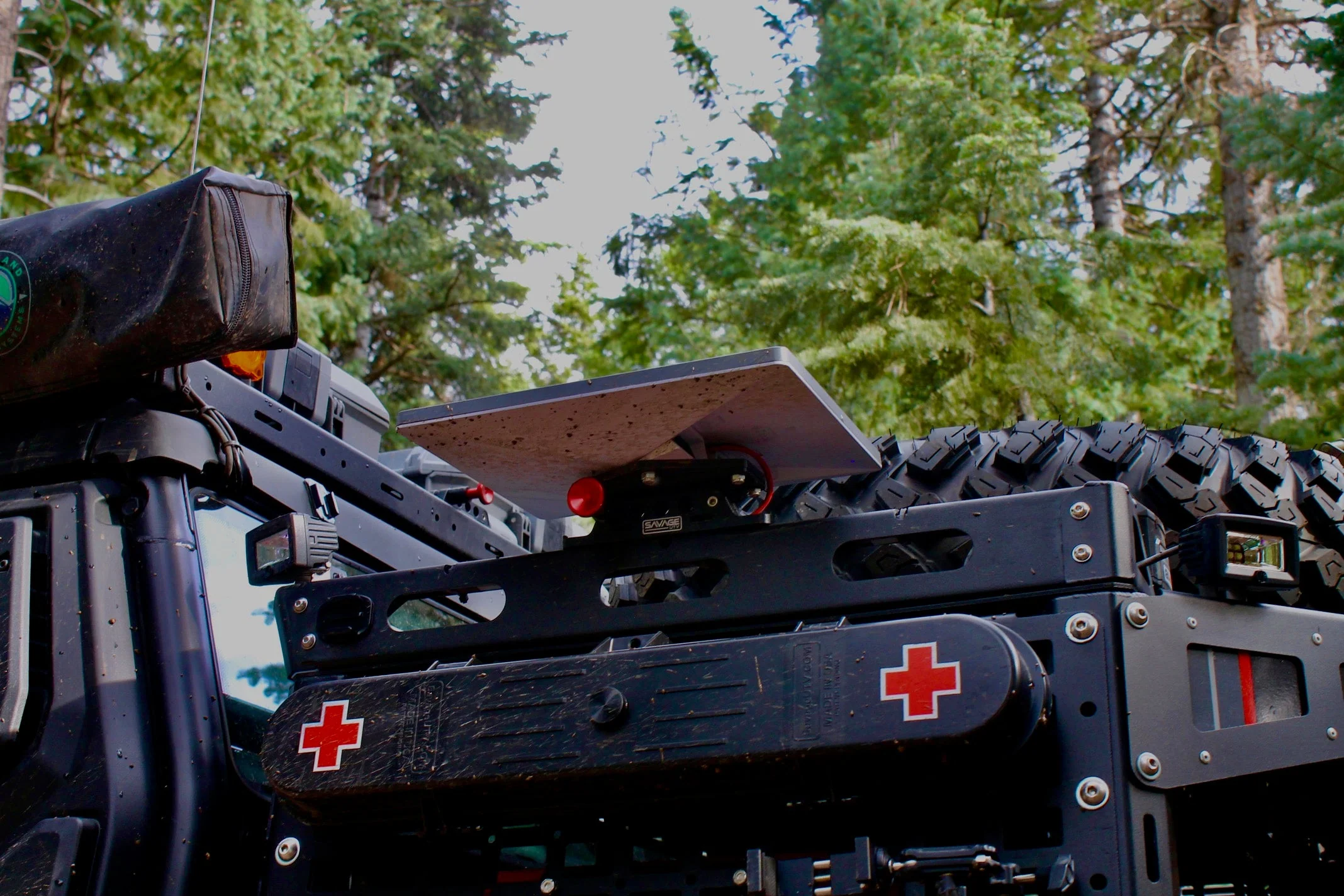

Quickly and easily mount and remove your Starlink Mini without the need for tools or any complicated process. Simply pull the red knob and your dish separates from the mount. Designed extremely tough to withstand gusty highway winds and nasty road vibrations, this mount is the perfect solution for users who frequently move their dish between different vehicles or locations.

Customize Your Kit:

• Mounting Options: The mount can be bolted directly to any flat surface or clamped onto round tubing using the provided hardware.

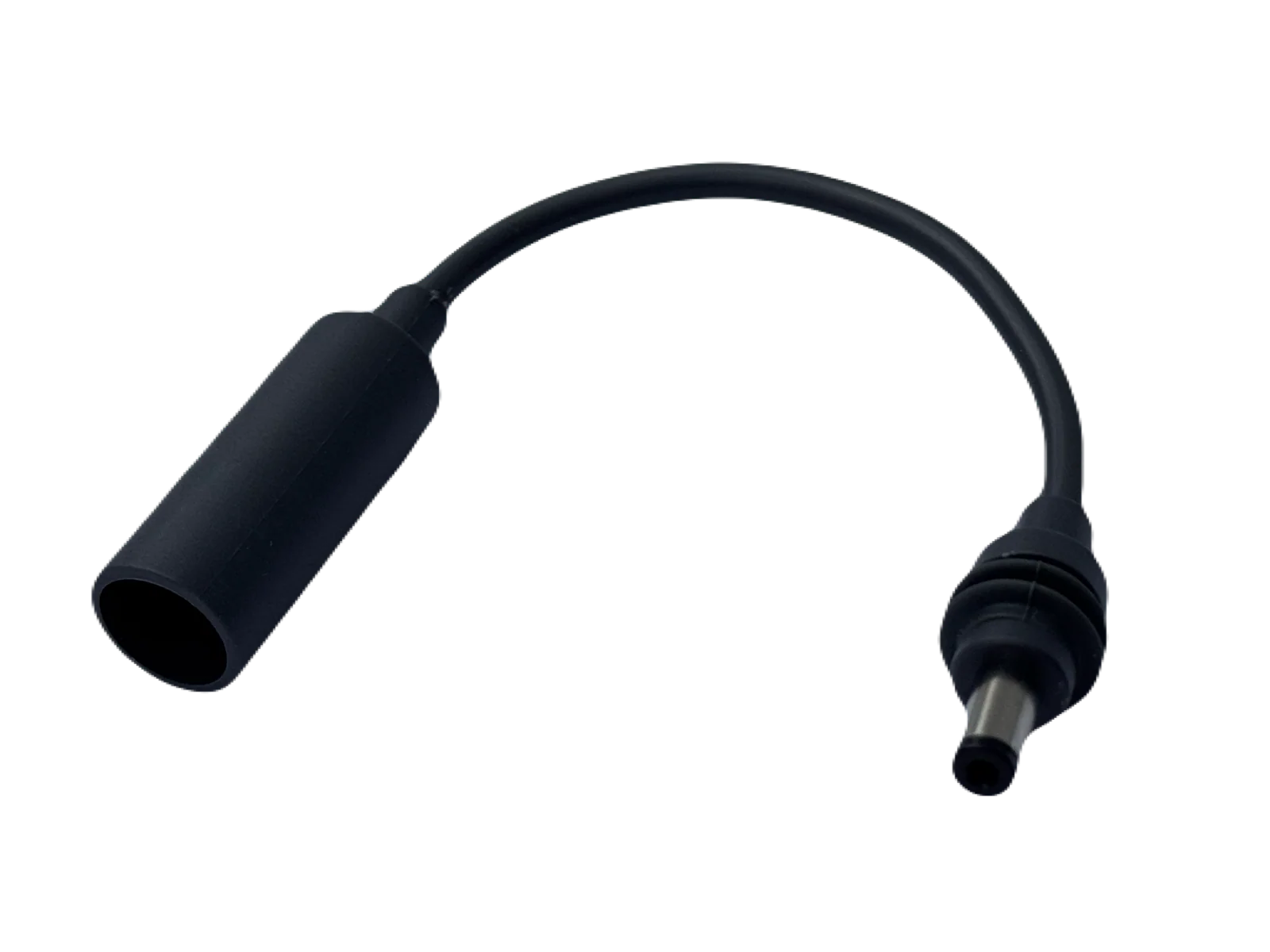

• Quick Release Cable: An optional weatherproof quick-release cable can be added at checkout. While not required, it saves time and energy if you plan to move your dish frequently between vehicles.

Features:

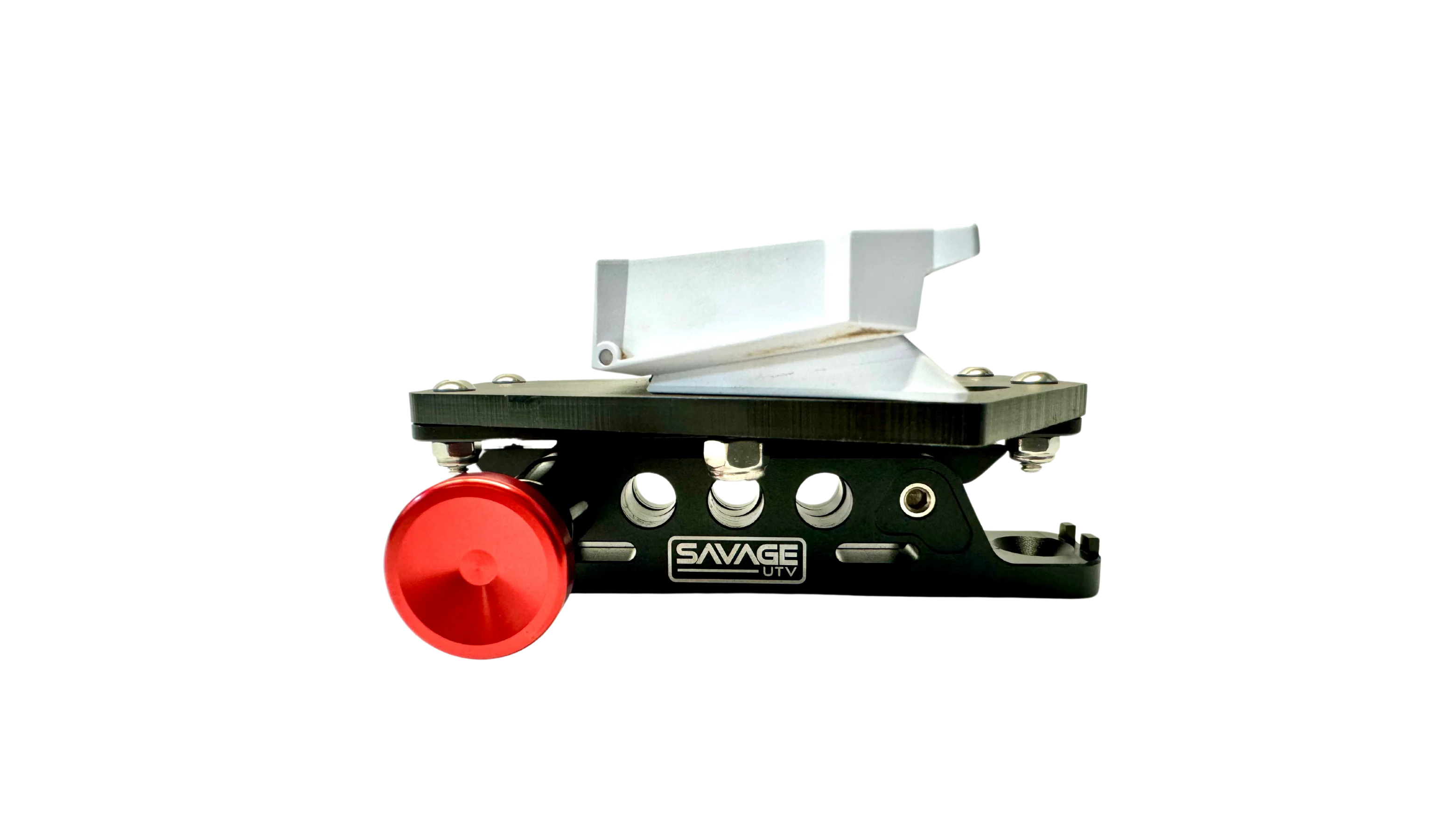

• Instant Separation: Red-knob quick release mechanism allows for dish removal in seconds.
• Premium Construction: Machined from 6061 Anodized Aluminum with stainless steel hardware for maximum durability.
• High Clearance: Raises the bottom of your dish 1.65" above the mounted surface for better airflow and cable management.

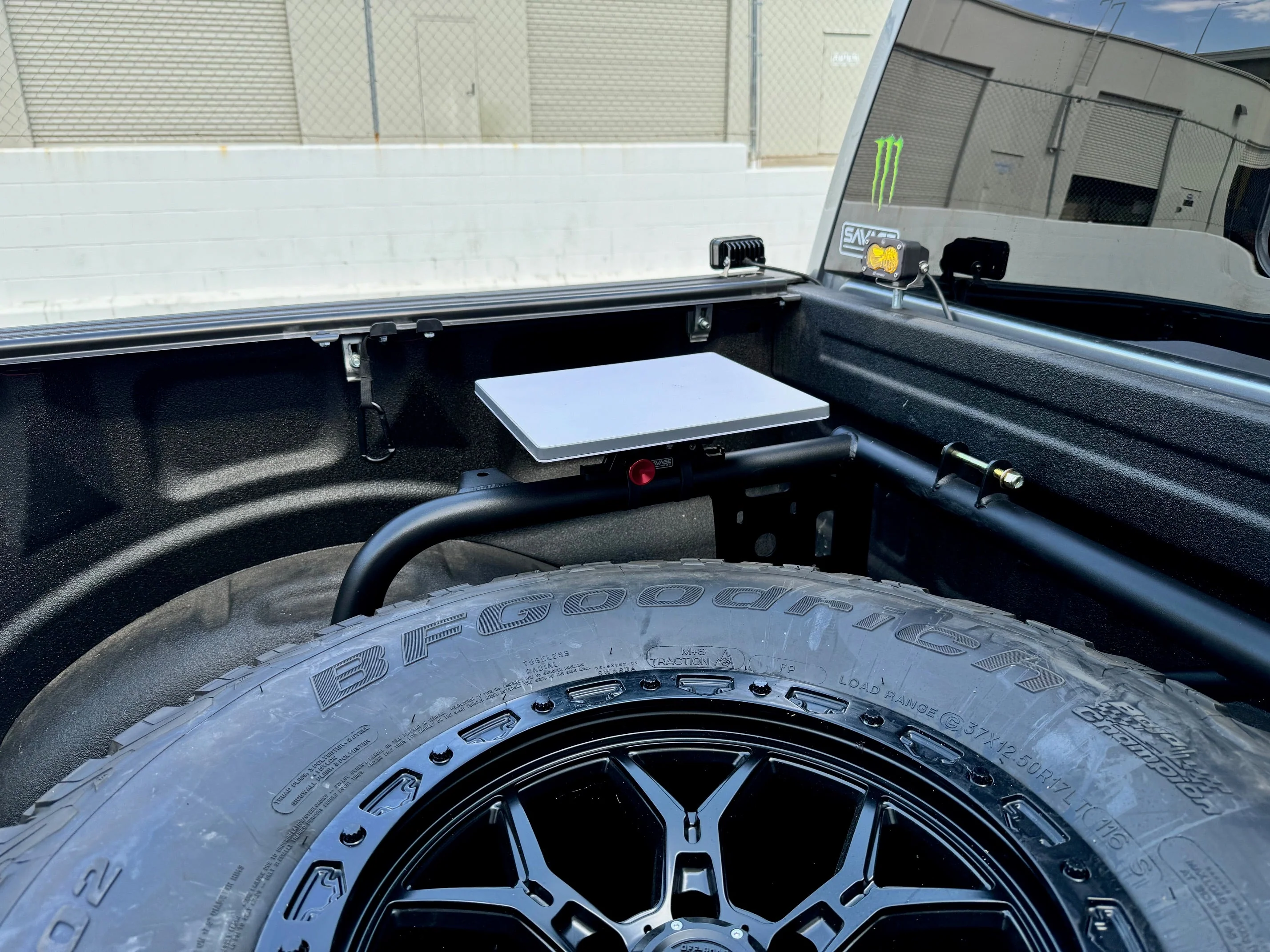

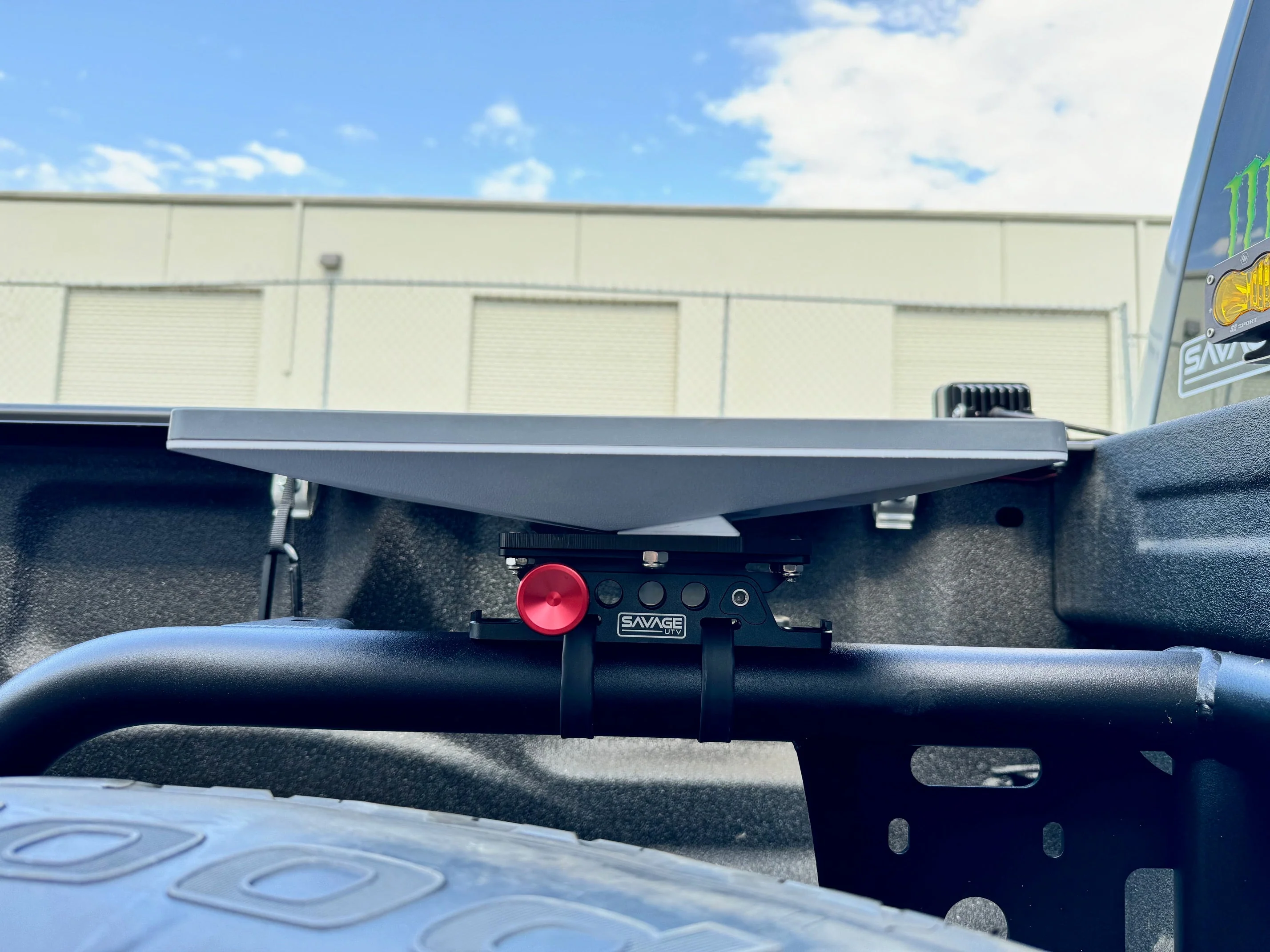

• Tubular Mounting: Includes hose clamps with insulation tubing for secure attachment to roll cages or bars.
• Intentional "Wiggle": Designed with a slight amount of play to ensure the release mechanism functions perfectly in extreme weather, heavy dirt, or dusty environments.

Includes:

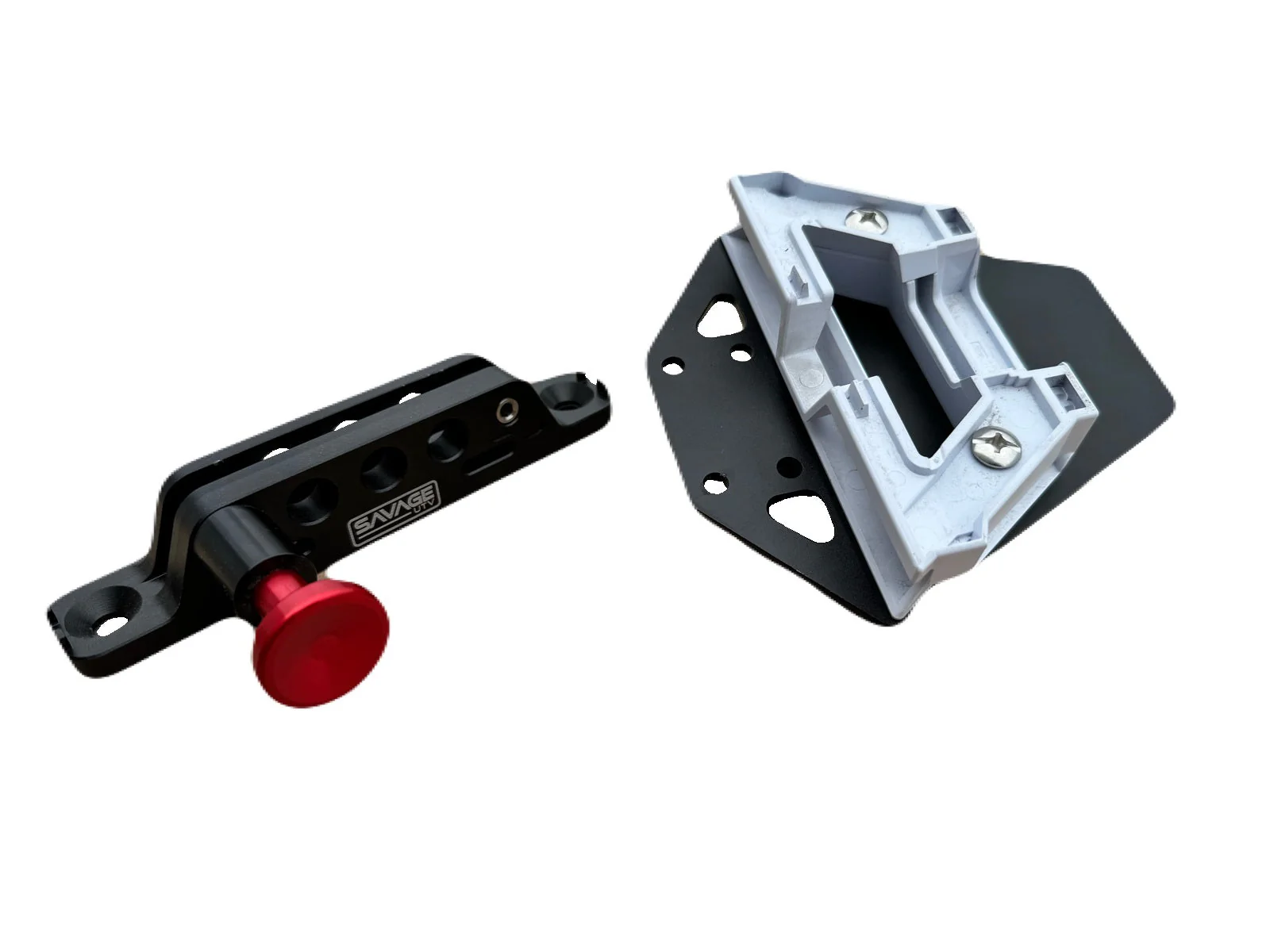

• (1) Upper Mount & (1) Lower Mount
• (2) Hose Clamps & (2) Hose Clamp Sleeves
• (4) Stainless Steel Bolts (for kickstand installation)
• (1) Drill Template

Technical Specifications:

• Mounting Holes: Approx. 5.5" apart on center.
• Hole Size: .3" (works best with 1/4-20 or #8 hardware).
• Height: Sits 1.65" above the surface.

Assembly & Installation:

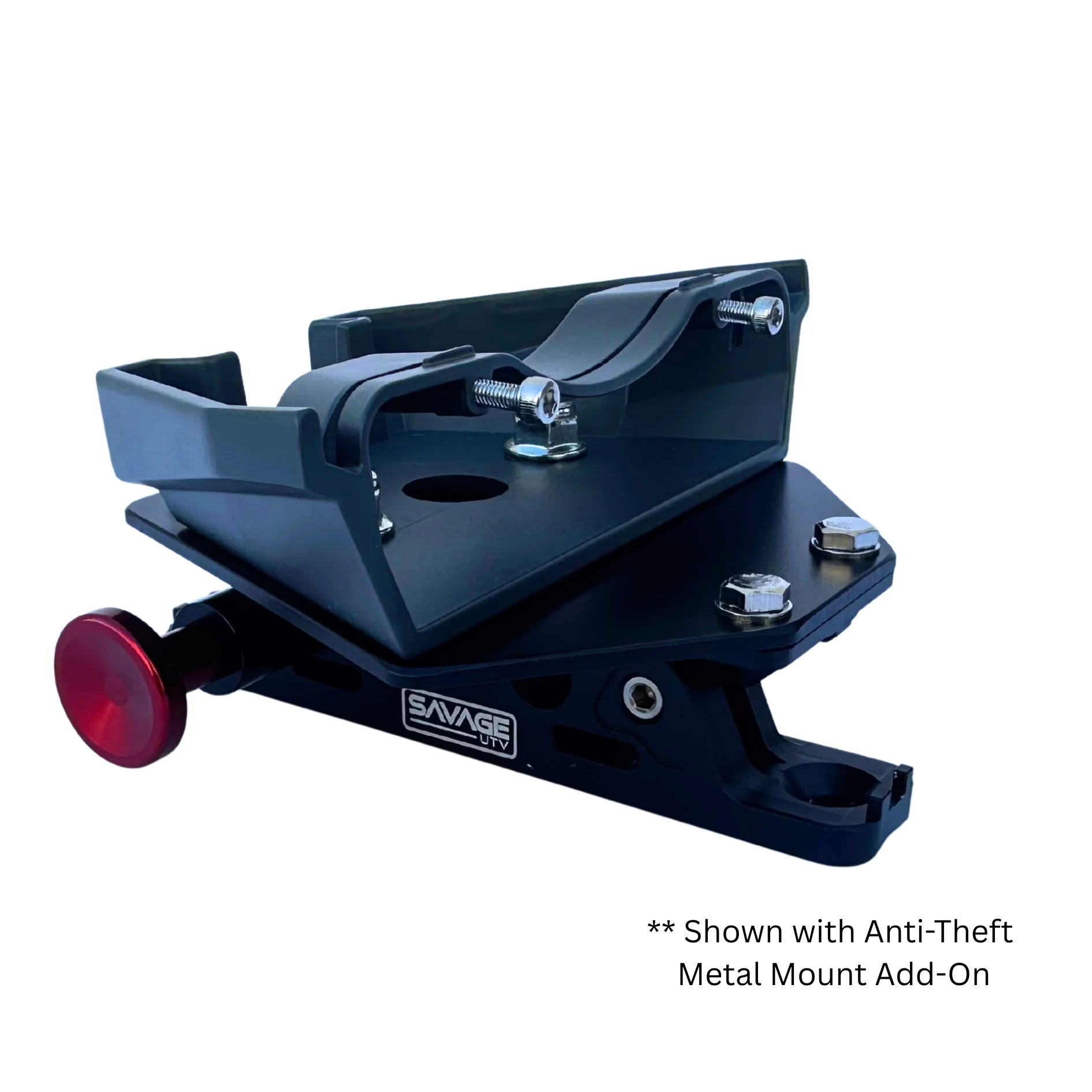

Note: Starlink provides the kickstand with your dish (KICKSTAND NOT INCLUDED WITH MOUNT). Some kickstands come pre-drilled; for those that do not, a drill template is included to add the (2) required holes. Simply attach the kickstand to the mount using the provided stainless hardware, click it into the dish, and you are ready to go.

---

Note: Starlink Dish and Equipment must be purchased separately.

Savage UTV LLC and Rugged Radios are not responsible for any damages caused by the use or misuse of the Roof Mounts, Starlink equipment or a combination of usage of both products. It is ultimately the responsibility of the user to follow the recommended operations. Savage UTV and Rugged Radios are not endorsed by Starlink or any of its affiliates.
